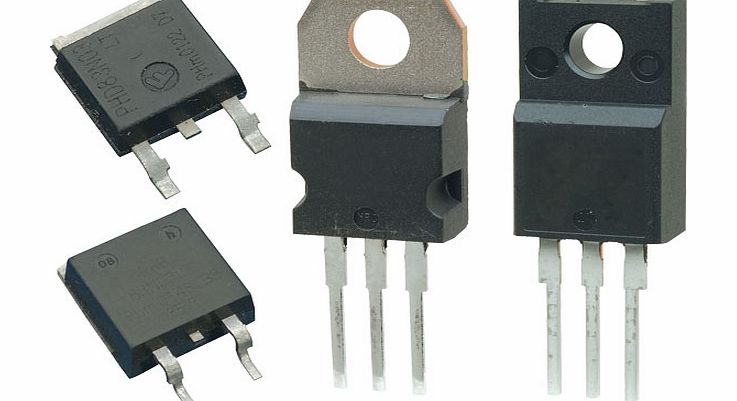

ST p6nk90z Mosfet To-220 900v 5.8a STP6NK90Z
SuperMESH High Voltage Power MOSFETs - ST STP6NK90Z, Zener Protected SuperMESH Power MOSFET, N-Chann
| SuperMESH High Voltage Power MOSFETs - ST STP6NK90Z, Zener Protected SuperMESH Power MOSFET, N-Channel Type, 900V Drain-source Breakdown Voltage, 1.56R Drain-source On-resistance, 5.8A Drain Current, 30V Gate Source Voltage, 17ns Turn-on Time, 20ns Turn-off Time, 140W Power, TO-220 Case, Extremely High dv/dt Capability, Gate Charge Minimized, Very Low Intrinsic Capacitances, Very Good Manufacturing Repeatability, Suitable for Switching Applications, Supplied in Tube Stp6nk90z Mosfet To-220 900v |
|
|
|
|
|
|
|
