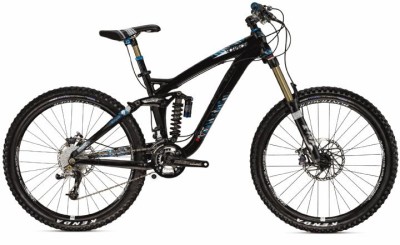

Trek Scratch 9 2010
Frameset. Frame Alpha Red Aluminum w/ABP, Full Floater, alloy EVO Link, E2 tapered head tube, overs
|
|
| Frameset. Frame Alpha Red Aluminum w/ABP, Full Floater, alloy EVO Link, E2 tapered head tube, oversized pivot bearings, ISCG03 mounts, 142x12mm or 135x12mm rear axle, replaceable derailleur hanger, adjustable geometry, 170mm travel. Rear Suspension Fox DHX RC-4, custom `gravity tuned` w/ externally adjustable velocity sensitive damping, bottom out force adjust and bottom out progressiveness, external rebound; 8.5`x2.5` 15.5` 400lb; 17.5` 450lb; 19.5` 500lb; 21.5` 550lb spring. Wheels. Wheels Bontrager Cousin Earl Pro Disc wheel system, 6 bolt, tubeless ready. Tires Bontrager FR-4, 2.35 Drivetrain. Shifters SRAM X.0 Trigger. Front Derailleur Shimano Deore, Direct Mount. Rear Derailleur SRAM X.O Crank Race Face Atlas, 36/24 Cassette SRAM PG970 11-34, 9 speed. Pedals Wellgo MG-1 Components. Saddle Bontrager Rhythm. Seat Post Crank Brothers Joplin w/remote height adjustment, 31.6 Stem Bontrager Rhythm. Handlebars Bontrager Big Earl, 25mm rise. Headset Cane Creek Frustum SE Light Edition, E2 Brakeset Avid Elixir CR MAG hydraulic disc. |
|
|
|
|
|
|
|
